PE Jacket Outdoor GDTS PSP Armored Hybrid Optical Fiber and Electrical Cable Ideal for Telecommunication
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Optic Fiber+RVV | Number Of Conductors | ≥ 10 |
|---|---|---|---|
| Application | Telecommunication | Fiber Type | G652D |
| Fiber Count | 2-288 | Jacket Material | PE |
| Packing | 2-4km/wooden Drum | Strength Member | Steel Tape |
| Oem | YES | ||
| Highlight | GDTS PSP Armored Hybrid Optical Fiber,PE Jacket Hybrid Optical Fiber Cable |
||
Product Description
Product Overview

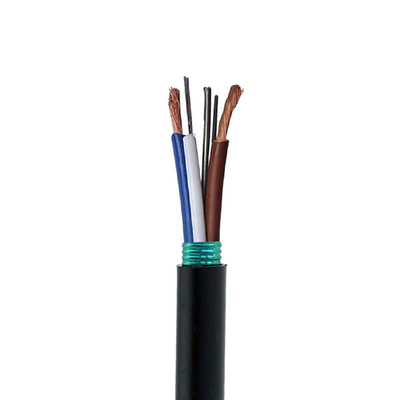

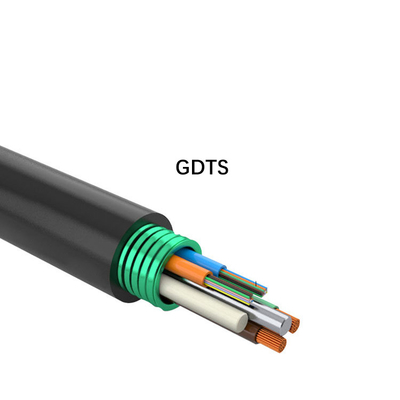

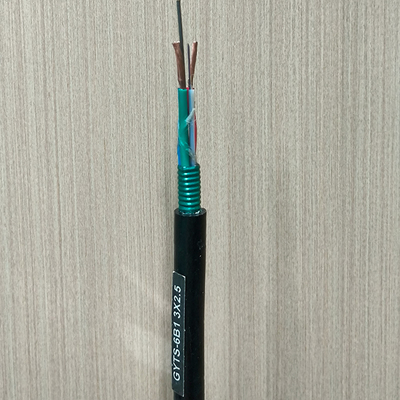

The GDTS Hybrid Cable is a durable, high-performance photoelectric composite cable that integrates optical fibers and copper power wires in a layer-stranded structure. Designed specifically for outdoor use, this cable is ideal for applications where data and power need to be transmitted simultaneously—such as in CCTV systems, smart poles, and remote monitoring stations.
The optical fibers are stranded around a central steel tape strength member, ensuring excellent mechanical protection and signal stability. Power conductors are placed in the outer layers, insulated with high-quality PVC or XLPE, while the entire cable is sheathed in UV-resistant PE, suitable for aerial, duct, or direct buried installation.
Key Features
Layer-Stranded Composite Structure – Stable transmission and balanced mechanical performance
Integrated Fiber and Power – Combines data and electricity in one cable, reducing labor and material cost
Steel Tape Strength Member – Provides robust tensile and crush resistance
UV-Resistant PE Sheath – Ensures durability in outdoor environments
Customizable Power Wire Options – Supports various copper sizes (e.g., 2×1.5mm² / 2×2.5mm²)
Easy Installation – Compatible with standard fiber and electrical system interfaces
Applications
-
IP camera and CCTV system deployment
-
Power and fiber delivery for smart pole and solar systems
-
Outdoor access networks and FTTH projects
-
Perimeter security and remote monitoring
-
Highway/tunnel fiber + power combo installations
-
Industrial facility data + power integration
Technical Specifications
| Parameter | Details |
|---|---|
| Structure | Layer-stranded hybrid construction |
| Fiber Type | Single Mode (G.652D / G.657A1 / G.657A2) |
| Fiber Count | 2–24 cores |
| Strength Member | Central Steel Tape |
| Power Conductor Options | 2×0.75mm², 2×1.0mm², 2×1.5mm², 2×2.5mm², etc. |
| Power Insulation | PVC or XLPE |
| Sheath Material | Black PE (UV-resistant), LSZH optional |
| Installation Method | Aerial / Duct / Direct Burial |
| Operating Temperature | -40°C to +70°C |
| Standards Compliance | IEC 60794 / ISO9001 / RoHS / TIA-568 |
Why Choose Our GDTS Cable?
As a reliable optical cable manufacturer, we specialize in producing customized hybrid cables to meet modern outdoor infrastructure demands. With our advanced production lines, strict quality control, and technical support team, we ensure every GDTS cable performs stably even in the toughest environments.
*OEM/ODM customization available
*Fast delivery & global shipping
*Long-term supply and competitive pricing
